MK Series CNC Gantry Cutting Machine

IDIKAR MK Series CNC Gantry Cutting Machine

0.00
¥0.00
¥0.00
¥0.00
¥0.00
Weight:0.00KG
Description

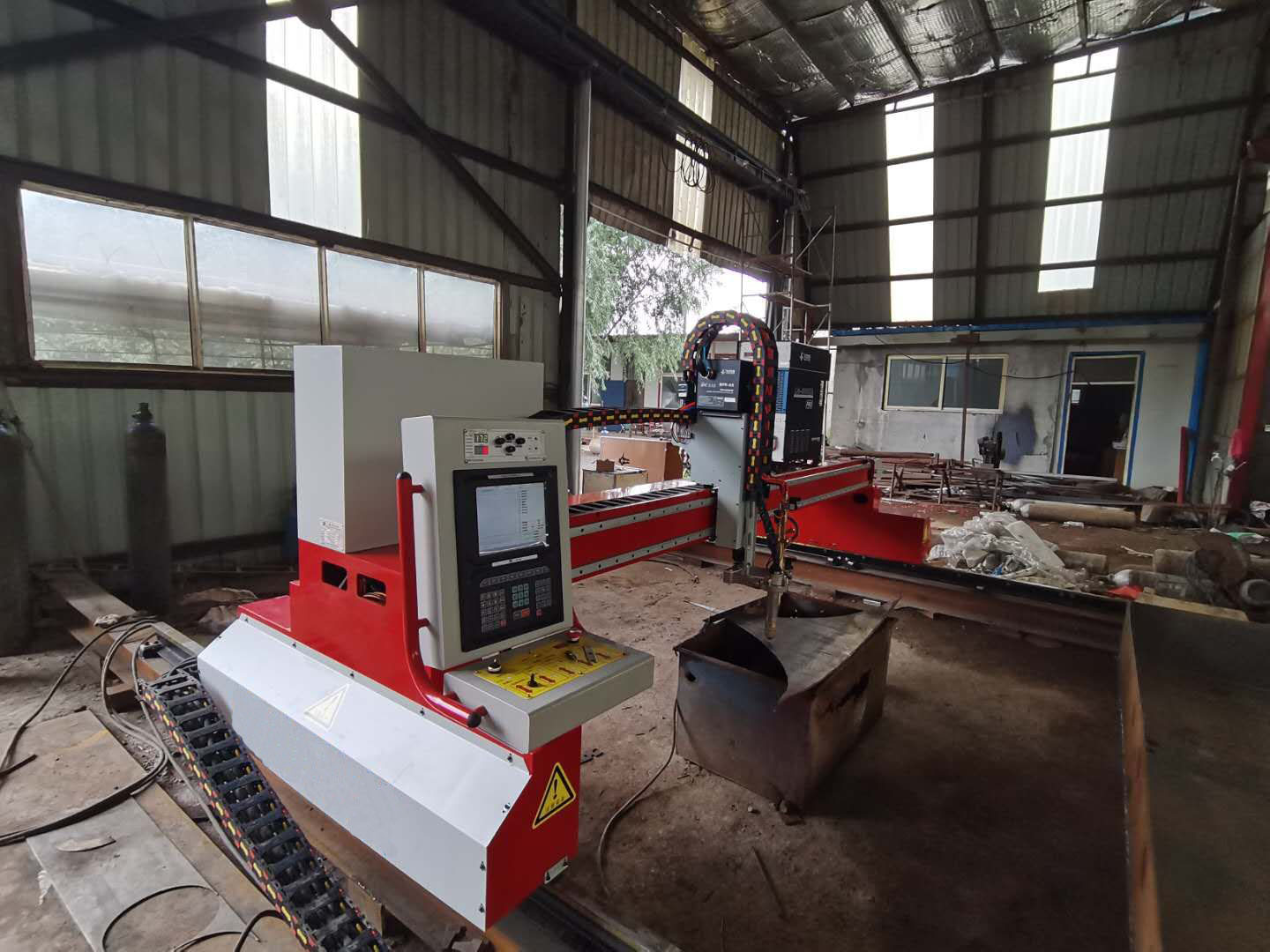

IDIKAR MK Series CNC Gantry Cutting Machine





Characters

1. Running accuracy, high precision of repeated restoration: mechanical accuracy: 0.02mm

2.It is a high precision mechanical processing platform.IDK-MK can be equipped with 6 axes cnc control system, it can be not only applied to plane cutting and automatic welding, but also work with multi-axis cnc processing equipment, such as special bevel unlimited rotary table, robot mechanical arm, multi-purpose sprayer, completing the complex process of multi-dimensional work piece processing.

3. If work with laser or plasma equipment, more revealing the high –precision mechanical quality and value of IDK-BG.

4.Gantry cnc plasma/flame cutting machine

5.Mechanical accuracy:0.02mm

6.6 axes can be expanded


Parameter

Lateral guide rail distance

3000mm-8000mm

Effective cutting width

2300mm

Effective cutting length

6000mm

Cutting method

Flame cutting or plasma cutting

Rated Power

1400w

Cutting thickness(plasma)

36mm(depends on the plasma source)

Cutting thickness(flame)

6-280mm

Cutting torch lifting distance

200mm

Cutting gas

Oxygen -acetylene / propane

Drive

Dual drive




Configuration





Cutting Sample
